\(QS179_{1}^{(5)}\)

Description

Topological configuration of singularities: \(∅,[ | , s];N,N, [ |, ∅]\)

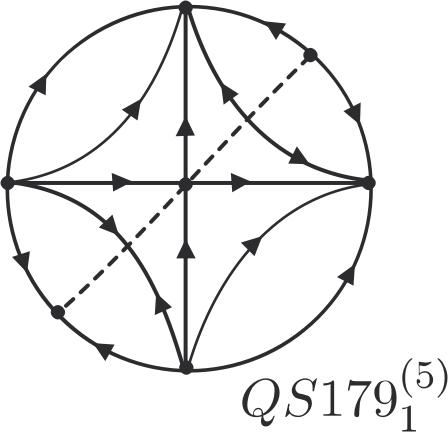

Phase Portrait

Topological Invariants

TCSP
\(179\)

The quadratic differential system

\[\begin{cases} \dot{x} = P_x(x,y) \\ \dot{y} = P_y(x,y) \end{cases}\]

has the following phase portrait done with P4.

With name \(LV_d.2(a)\) in {D. Schlomiuk and N. Vulpe}, Global classification of the planar Lotka--Volterra differential systems according to their configurations of invariant straight lines, emph{J. Fixed Point Theory Appl.}, { bf 8}, no. 1 (2010), 177--245.
With names \(Fig 5 p3B\) and \(Fig 7 p3C\) in {A. M. Travaglini}, Integrability and geometryof quadratic differential systems with invariant hyperbolas, {Ph. D., Uni. de Sao Paulo} (2026).
With name \(QS179_{1}^{(5)}\) in {J. C. Artés and N. Vulpe}, The codimension of the phase portraits for degenerate quadratic differential systems, Bul. Acad. c Stiin c te Repub. Mold. Mat. { bf 2024}, no.~3(106), 29--53; MR4967334
With name \(Fig5.3 II-III\) in {J. W. Reyn}, Phase portraits of a quadratic system of differential equations occurring frequently in applications, emph{Nieuw Arch. Wisk. (4)}, textbf{5}, no. 2 (1987), 107--151.Note (for name \(Fig5.3 II-III\)): missed arrow
